Redefining Modular Rainwater
Harvesting SystemsThe ultimate compressive strength of our heavy-duty rainwater modules is not achieved simply by thickening the plastic walls, but is the product of a combination of advanced materials science and complex spatial geometry. Yingyuan Environment uses molecularly modified polypropylene (PP) to manufacture the structural modules, ensuring unparalleled physical stability and chemical inertness.
Harvesting SystemsThe ultimate compressive strength of our heavy-duty rainwater modules is not achieved simply by thickening the plastic walls, but is the product of a combination of advanced materials science and complex spatial geometry. Yingyuan Environment uses molecularly modified polypropylene (PP) to manufacture the structural modules, ensuring unparalleled physical stability and chemical inertness.
YYRH-MR-1000-HD
YYRH-MR-1000-EW
YYRH-MR-1200-SD
YYRH-MR-1200-EW
Moduble model:
Length/ft :
Wihth/ft :
hegiht/ft

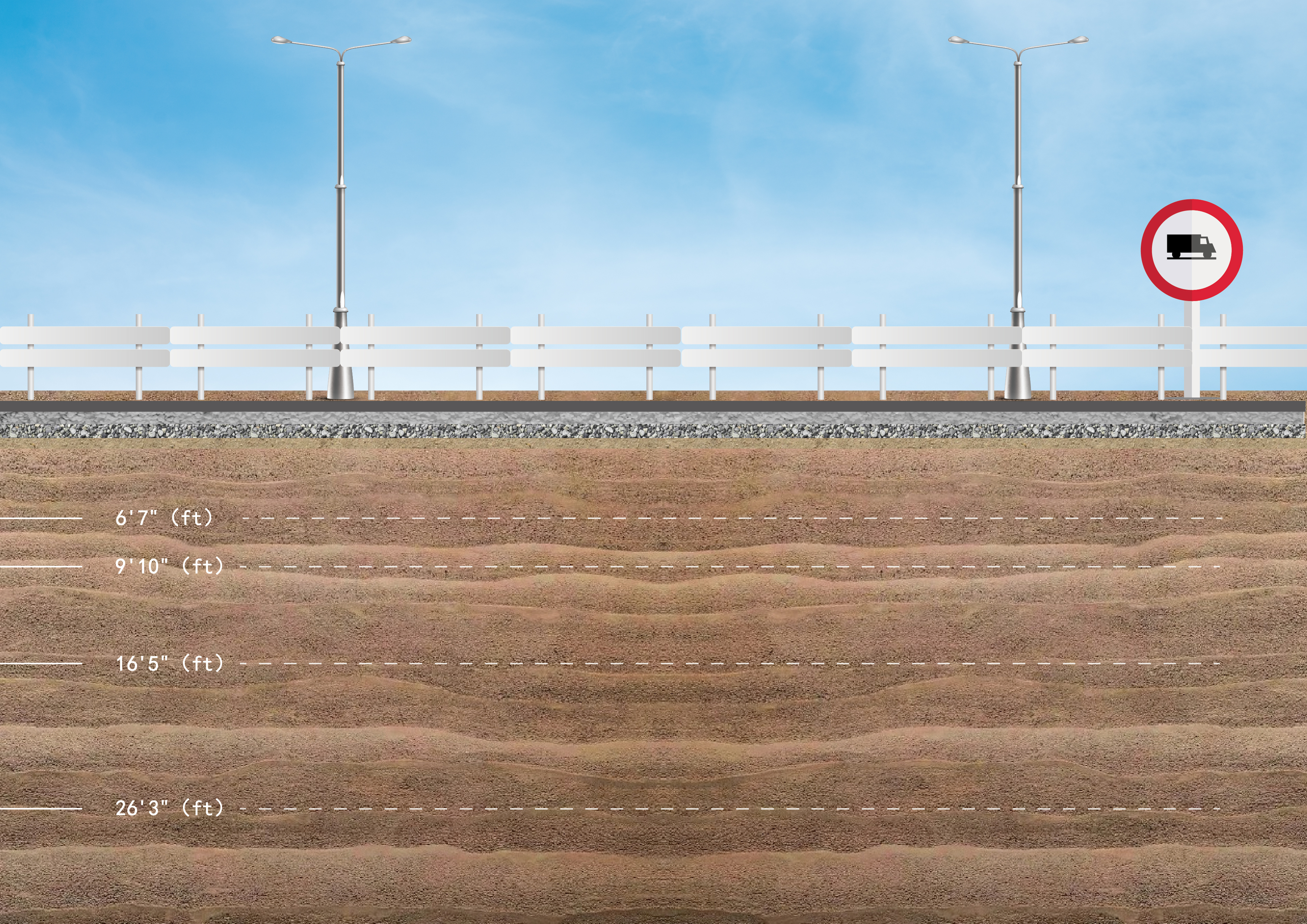

Cover Depth:
≤ 6'7"(0-2m)
< 6'7" ≤ 9'10"(2-3m)
< 9'10" ≤ 6'5"(3-5m)
< 16'5" ≤ 26'3"(5-8m)
Surface Load:
Green space (1T)
Parking space (2T)
Small vehicle lane (3T)
Medium vehicle lane (5T)
Heavy vehicle lane (10T)
START
YYRH-MR-1000-HD Stormwater Crate
85-Ton Vertical Crush Strength Specifications & BenchmarksPrimary Engineering Parameters:
Model Number:
YYRH-MR1000-HD
Dimensions (L×W×H): 1000 × 500 × 200 mm
Single Unit Mass: 6.7 kg
Vertical Loading Pressure: > 85T (Exceeds standard heavy-duty pavement requirements)
Lateral Loading Pressure: > 45T (High resistance to deep soil shear forces and hydrostatic pressure)
Dimensions (L×W×H): 1000 × 500 × 200 mm
Single Unit Mass: 6.7 kg
Vertical Loading Pressure: > 85T (Exceeds standard heavy-duty pavement requirements)
Lateral Loading Pressure: > 45T (High resistance to deep soil shear forces and hydrostatic pressure)
YYRH-MR-1000-EW Stormwater Crate
70-Ton Vertical Crush Strength Specifications & BenchmarksPrimary Engineering Parameters:
Model Number:
YYRH-MR1000-EW
Dimensions (L×W×H): 1000 × 500 × 200 mm
Single Unit Mass: 6.8 kg
Vertical Loading Pressure: > 55T (Exceeds standard heavy-duty pavement requirements)
Lateral Loading Pressure: > 20T (High resistance to deep soil shear forces and hydrostatic pressure)
Dimensions (L×W×H): 1000 × 500 × 200 mm
Single Unit Mass: 6.8 kg
Vertical Loading Pressure: > 55T (Exceeds standard heavy-duty pavement requirements)
Lateral Loading Pressure: > 20T (High resistance to deep soil shear forces and hydrostatic pressure)
YYRH-MR-1200-SD Stormwater Crate
85-Ton Vertical Crush Strength Specifications & BenchmarksPrimary Engineering Parameters:
Model Number:
YYRH-MR1200-SD
Dimensions (L×W×H): 1200 × 600 × 300 mm
Single Unit Mass: 8.7 kg
Vertical Loading Pressure: > 60T (Exceeds standard heavy-duty pavement requirements)
Lateral Loading Pressure: > 25T (High resistance to deep soil shear forces and hydrostatic pressure)
Dimensions (L×W×H): 1200 × 600 × 300 mm
Single Unit Mass: 8.7 kg
Vertical Loading Pressure: > 60T (Exceeds standard heavy-duty pavement requirements)
Lateral Loading Pressure: > 25T (High resistance to deep soil shear forces and hydrostatic pressure)
YYRH-MR-1200-EW Stormwater Crate
45-Ton Vertical Crush Strength Specifications & BenchmarksPrimary Engineering Parameters:
Model Number:
YYRH-MR1200-EW
Dimensions (L×W×H): 1200 × 600 × 300 mm
Single Unit Mass: 8.75 kg
Vertical Loading Pressure: > 35T (Exceeds standard heavy-duty pavement requirements)
Lateral Loading Pressure: > 15T (High resistance to deep soil shear forces and hydrostatic pressure)
Dimensions (L×W×H): 1200 × 600 × 300 mm
Single Unit Mass: 8.75 kg
Vertical Loading Pressure: > 35T (Exceeds standard heavy-duty pavement requirements)
Lateral Loading Pressure: > 15T (High resistance to deep soil shear forces and hydrostatic pressure)
