Heavy Duty Stormwater Crates

Heavy-Duty Modular Stormwater
Engineered for 85-Tonne Axial Loads at 8 Metre Burial

When the stormwater tank sits under a truck yard, cargo apron, or port container stack, module selection is not about cost -- it is about structural survival. Yingyuan HD Heavy-Duty Series: SL-Zh-8 classified, 2 million fatigue cycles verified, 850+ kN/m2 ultimate axial. No crane. No concrete. Just engineered geocellular load transfer.
HD Heawy Duty Series

When the Ground Above Carries 40 Tonnes Why Lightweight Modules Fail Under Heavy-Duty Loading

The Heavy-Duty Problem Statement

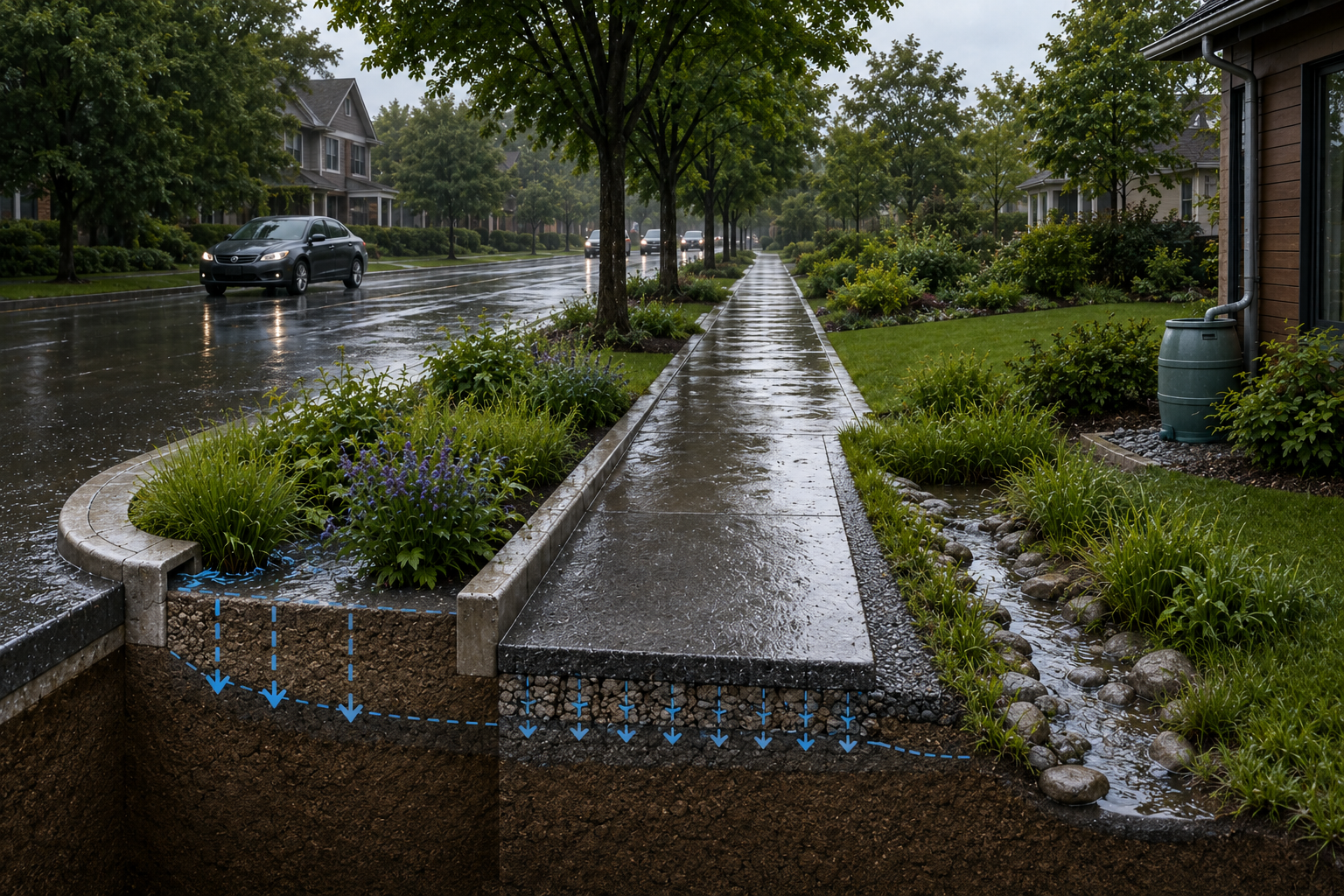

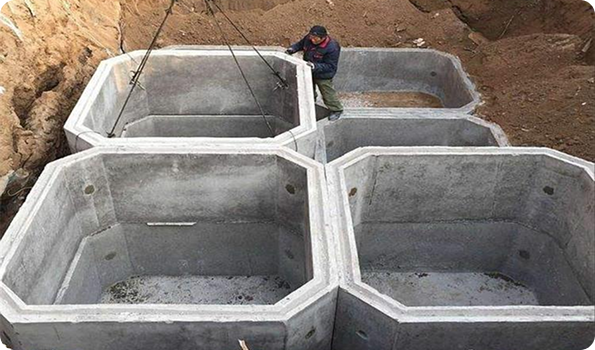

In conventional stormwater engineering, parking lots, roadways, airport aprons, and port container yards are the domain of reinforced concrete. The reasoning is straightforward: a 40-tonne truck axle delivers a dynamic wheel load exceeding 80 kN through the pavement structure into the subgrade. A modular plastic tank -- any plastic tank -- intuitively appears inadequate. This intuition is correct for standard modules rated to 25-40 tonnes static axial. It is incorrect for a purpose-engineered heavy-duty geocellular system whose column architecture, material formulation, and connector design have been optimized specifically for dynamic, repetitive, high-magnitude loading. Yingyuan's HD series does not compete with standard modules on cost per cubic metre; it competes with cast-in-place concrete on constructability, carbon footprint, and maintenance accessibility -- while delivering equivalent structural performance.

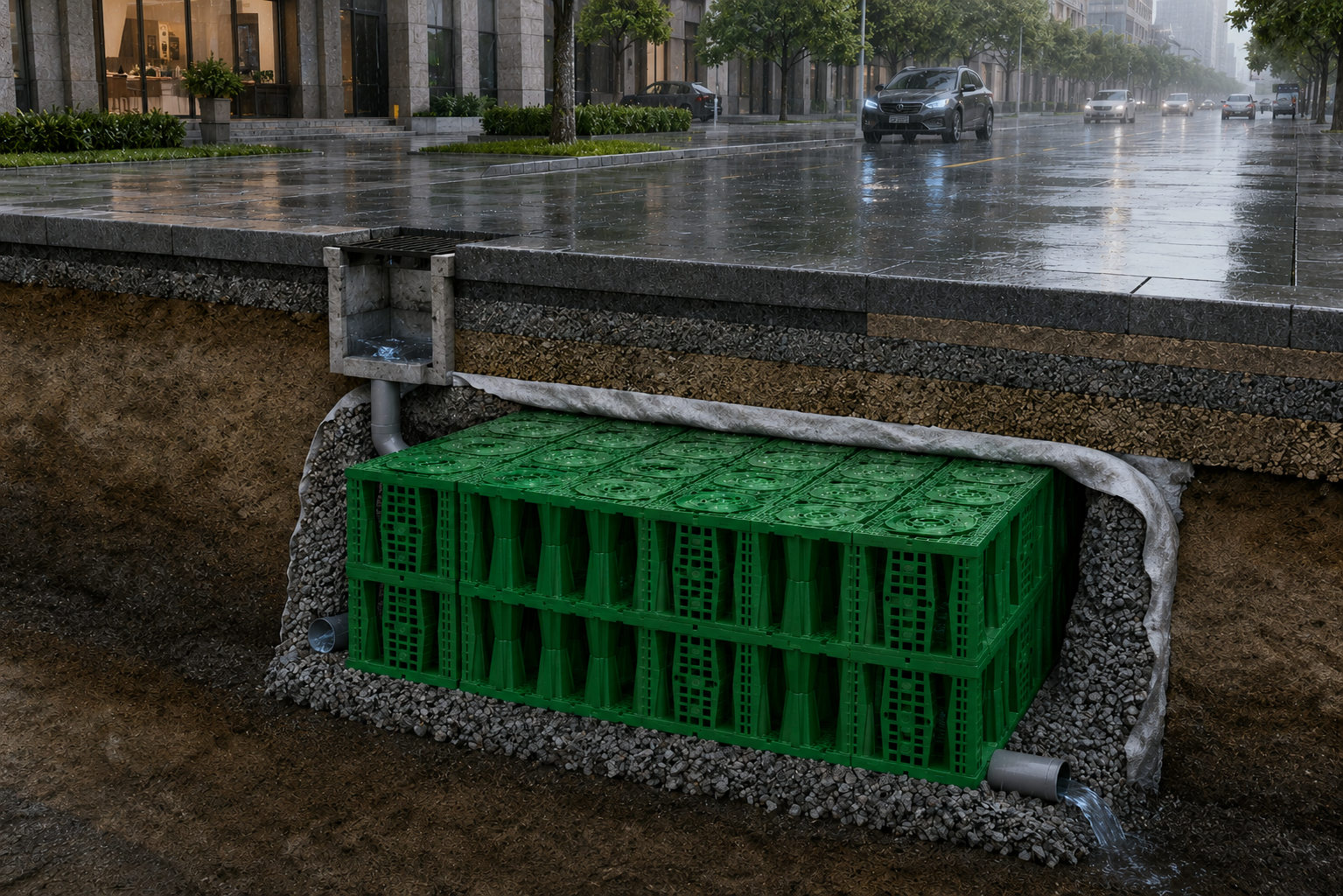

The HD Series Design Philosophy -- Load Path Engineering
The HD module's structural performance is not achieved by simply thickening the PP walls. The 8-column architecture (four corner columns, four mid-side columns) creates 16 independent load paths from the top plate to the base plate, each column operating in pure compression. The column aspect ratio (height:diameter) is kept below 8.5:1 to preclude buckling under combined axial and lateral loading. The base and top plates are rib-stiffened in a grid pattern that transfers distributed pavement load to the column heads without localized flexural failure. The reinforced connector clip provides inter-module shear transfer, so adjacent modules share load -- a 40-tonne point load is distributed across 4-6 adjacent modules, not concentrated on one. This is structural engineering, not plastic extrusion. The HD module is designed by a team that includes a Chartered Structural Engineer (CEng MICE) with 18 years of geotechnical-structural interface experience.
Verification Regime -- Not Just a Data Sheet Number
The SL-Zh-8 classification (CJ/T 542-2020) requires ultimate axial compressive strength ≥ 800 kN/m2. Yingyuan's HD module achieves 850 kN/m2 in independent testing (Shanghai Municipal Engineering Testing Center, Report SMETC-2023-SL-0472). But the classification test is static. Heavy-duty applications experience cyclic loading -- an airport apron sees 50-200 gear-load cycles per day, accumulating 50,000-200,000 cycles over 30 years. Yingyuan therefore commissioned cyclic fatigue testing to ASTM D2412 protocol: 2 million load cycles at 20-80% of ultimate load range, with deflection measured every 100,000 cycles. Result: maximum cumulative deflection 1.7%, no crack initiation, no change in load-deflection hysteresis curve shape after 2 million cycles. This is the engineering evidence that separates a heavy-duty module from a standard module with an optimistic data sheet.

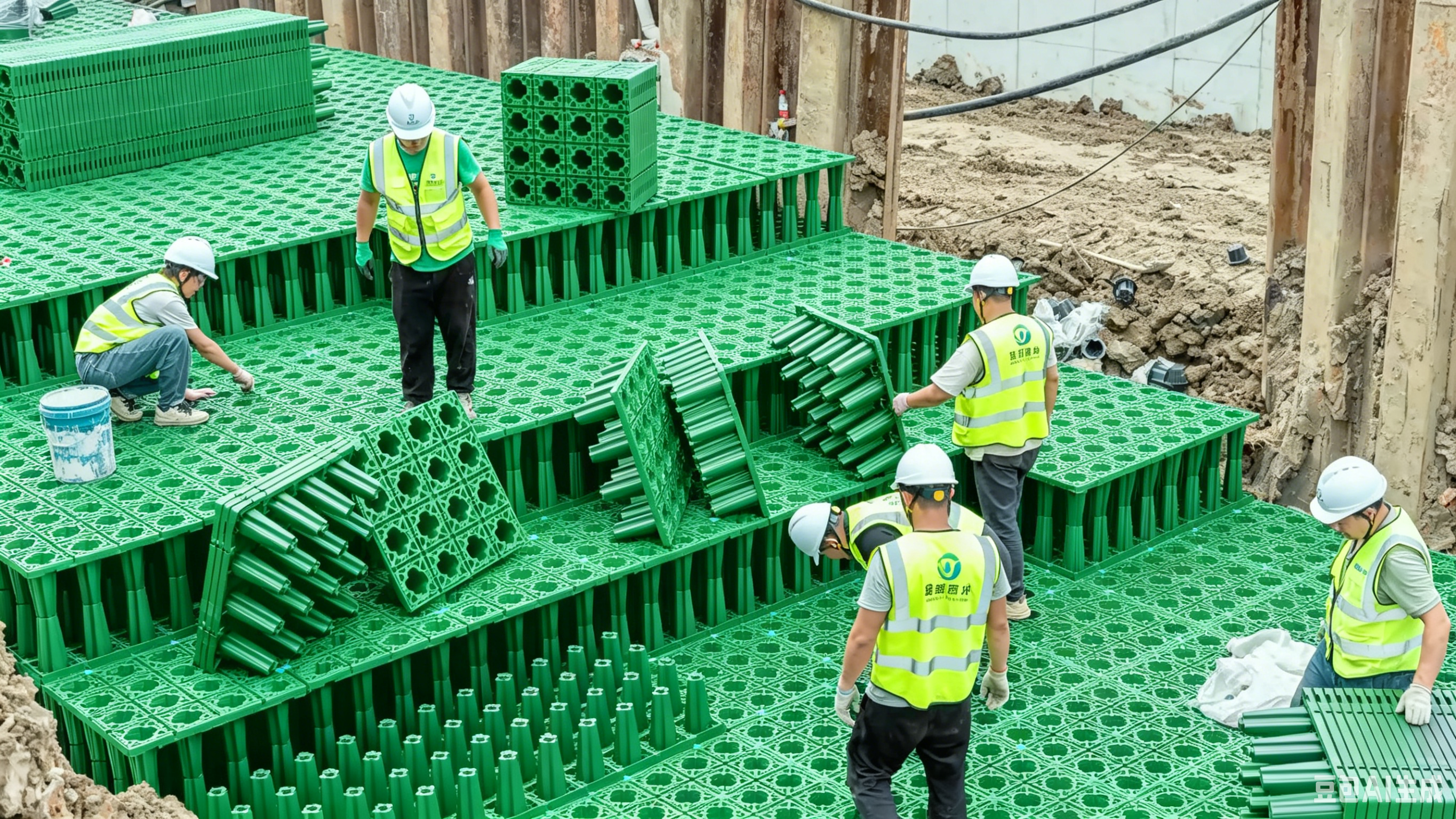

Three Heavy-Duty Case Studies From Design to Performance Verification

  • ParameterValue
  • Project typeLogistics centre stormwater detention + landscape irrigation harvesting
  • LocationUnited Arab Emirates
  • Storage volume1,100 m3 total -- 800 m3 detention (HD), 300 m3 harvesting (EW, adjacent landscape zone)
  • Module countApproximately 8000 HD + 3000 EW (11000 total)
  • Burial depth3.0m (finished yard level), 4.2m at deepest point (drainage sump area)
  • Design vehicle40T articulated HGV with 11.5T drive axle (D400 loading class)
