Stormwater Solutions for Logistics Hubs

High-Capacity Geocellular Systems For Heavy-Duty Distribution Centers

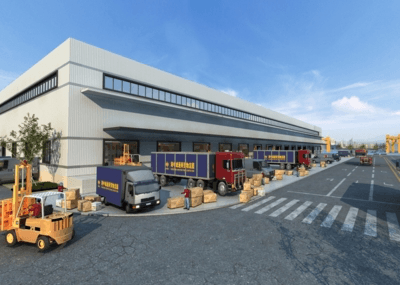

Logistics hubs and freight terminals require stormwater management systems capable of withstanding extreme loads from heavy-duty vehicles while maintaining reliable drainage performance during intense rainfall events.

Load capacity greater than 85 tons

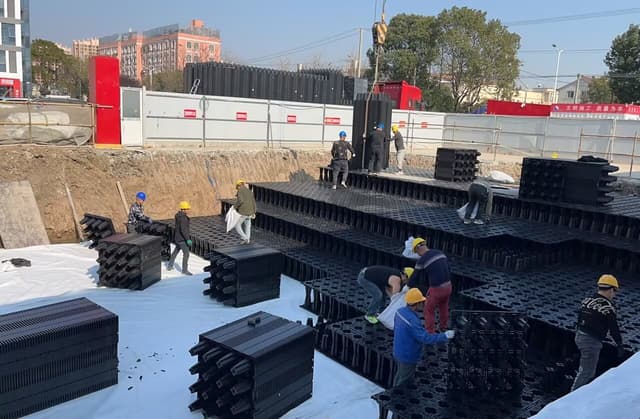

The YYRH-MR-1000-HD series modules are specially designed to withstand the extreme loads of fully loaded trucks, forklifts and warehouse equipment commonly seen in logistics operations.

90-92% Porosity

Industry-leading porosity accommodates large volumes of rainwater on impermeable logistics facility surfaces, while maintaining structural integrity under heavy loads.

Design service life of 50–60 years

Molecularly modified polypropylene structure ensures long-term dimensional stability and creep resistance for buried infrastructure applications.

400 m³ installed daily

Fast installation capacity of 400 cubic meters per day — minimizes on-site disruption during construction and enables earlier facility commissioning.

Yingyuan Environment provides proven stormwater solutions for logistics hubs and distribution centers, with load capacity, installation speed and long-term reliability as key project requirements.

Critical Challenges In Logistics Facility Stormwater Management

Extreme Load Requirements

Logistics hubs experience continuous heavy vehicle traffic including loaded trucks exceeding 85T gross weights, forklifts operating at 3-5T per axle, and warehouse equipment imposing significant point loads on facility surfaces. Conventional drainage systems often fail prematurely under these demanding conditions, resulting in costly repairs and operational disruptions.

Extreme Load Requirements

Rapid Stormwater Removal

Construction Schedule Pressure

Long-Term Maintenance Costs

Soil Lateral Pressure

Application Scenarios

Distribution Center Loading Docks

•Loading dock areas experience constant forklift traffic and occasional loaded truck positioning, imposing sustained loads on stormwater infrastructure beneath concrete slabs. The 90-92% porosity efficiently manages stormwater from large roof and paved surfaces while maintaining stable surface conditions for logistics operations.

Freight Terminal Yard Areas

•Open freight terminal yards subject to continuous heavy vehicle traffic require robust stormwater management systems supporting loaded container trucks, chassis, and handling equipment. The combination of >85T vertical load capacity and 90-92% porosity addresses both structural and drainage requirements within single subsurface system.

Warehouse Roof Drainage

•Large warehouse roof areas draining to subsurface retention systems benefit from YYRH-MR modules’ high storage capacity and rapid installation. The 400m³/day installation rate enables stormwater infrastructure completion ahead of building envelope closure.

Cold Storage Facility Drainage

•Temperature-controlled logistics facilities requiring subsurface drainage for refrigeration condensate and thermal cycling management benefit from PP material’s proven performance across extreme temperature ranges.

Key Solution Features

SpecificationPerformance ValueLogistics Application Advantage
Vertical Load Capacity>85TSupports loaded trucks and forklifts
Lateral Load Capacity>45T (HD) Resists soil pressures
Porosity90-92%High storage volume
Design Service Life50-60 yearsReduces lifecycle costs
Component Weight17.6kg per unitManual handling
Installation Rate~400m³/dayFast project delivery

Material Technology

Molecular-level modified polypropylene (PP) construction delivers superior strength-to-weight ratio and enhanced rigidity compared to conventional HDPE alternatives, critical for logistics applications requiring sustained load-bearing performance. The advanced PP formulation provides exceptional environmental stress crack resistance (ESCR), ensuring long-term durability in buried applications subject to temperature variation, moisture cycling, and chemical exposure from logistics facility stormwater runoff.

Technical Specifications

ParameterYYRH-MR-1000-HDYYRH-MR-1000-EW
Vertical Load>85T>70T
Lateral Load>45T>30T
Porosity90-92%90-92%
Design Life50-60 years50-60 years
Dimensions1000×500×200mm1000×500×200mm

Engineering Support

Yingyuan Environment engineering team provides project-specific load calculations, burial depth recommendations, and system configurations optimized for logistics facility applications.

Recommended Products

YYRH-MR-1000-HD

Load Capacity:>85T vertical, >45T lateral Primary Application:Heavy-duty logistics, full range Suitability:★★★★★ Preferred

Suitability :★★★★★

YYRH-MR-1000-EW

Load Capacity:>70T vertical, >30T lateral Primary Application:Medium-duty, cost-optimized Suitability:★★★★☆ Suitable

Suitability :★★★★☆

Choose YYRH-MR-1000-HD for: Maximum load capacity requirements (>85T), heavy-duty forklift traffic, port facility crossover applications, maximum lateral load resistance. Choose YYRH-MR-1000-EW for: Standard logistics vehicle loads (70-85T range), budget-conscious projects, standard burial depths.

•YYRH-MR-1000-HD Product Page - Heavy-duty product details •YYRH-MR-1000-EW Product Page - Medium-duty product details •Installation Guidelines - Installation procedures for logistics applications •Maintenance Manual - Long-term maintenance requirements •Case Studies - Successful logistics facility installations

Get a Custom Technical Proposal

Stormwater solutions engineered for your specific logistics facility requirements.

Load Capacity

>85T vertical load capacity supports heavy-duty logistics operations without structural concerns

Storage Efficiency

90-92% porosity accommodates large stormwater volumes within constrained site footprints

Schedule Acceleration

400m³/day installation rate enables faster project completion and earlier occupancy

Lifecycle Value

50-60 year design life minimizes replacement cycles and long-term ownership costs
